Extractors,Apparatus,Jumbo
- Brand: Proglass
- Product Code: EK01-1004-00
- Availability: In Stock
Ex Tax: $462.13

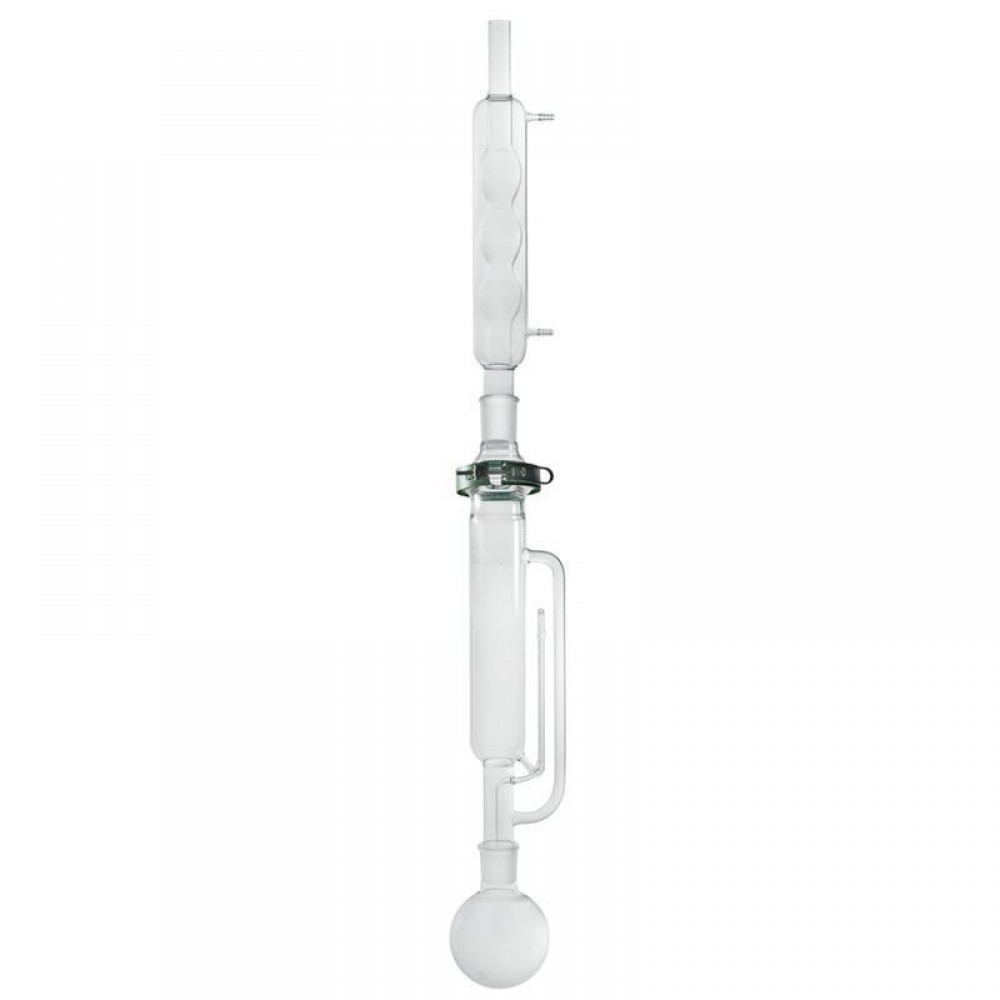

Jumbo Soxhlet extraction apparatus equipped with a Duran flange at the top of the extractor. Flange is formed with a groove in the flat portion of the mating surface to accept a PTFE covered silicone o-ring to permit grease free assembly. The adapter between the condenser and extractor has a top outer joint and a Duran flange which attaches to the extractor body with a CG-141 stainless steel clamp. Complete apparatus consists of a condenser, extractor, round bottom flask, adapter, PTFE covered o-ring and clamp. PTFE sleeves and heating mantles must be ordered separately.
| Specifications: | "A" | "B" | "C" |
| Extractor Capacity (mL) | 500 | 1,500 | 5,000 |
| Extractor I.D. (mm) | 68 | 95 | 140 |
| Extractor Flange Size | 60 | 100 | 150 |
| Extractor Lower Joint | 45/50 | 45/50 | 55/50 |
| Condenser Length (mm) | 350 | 400 | 750 |
| Paper Thimble Size (mm) | 58 x 170 | 81 x 230 | 125 x 310 |
| Flask Capacity (mL) | 1,000 | 3,000 | 10,000 |
Be Made From G3.3 Borosilicate Glass
Annealing Point ------560℃
Linear Coefficient of Expansion------ 32×10-7/℃
Softening Point------820℃
Tags: Extractors, Apparatus, Soxhlet
