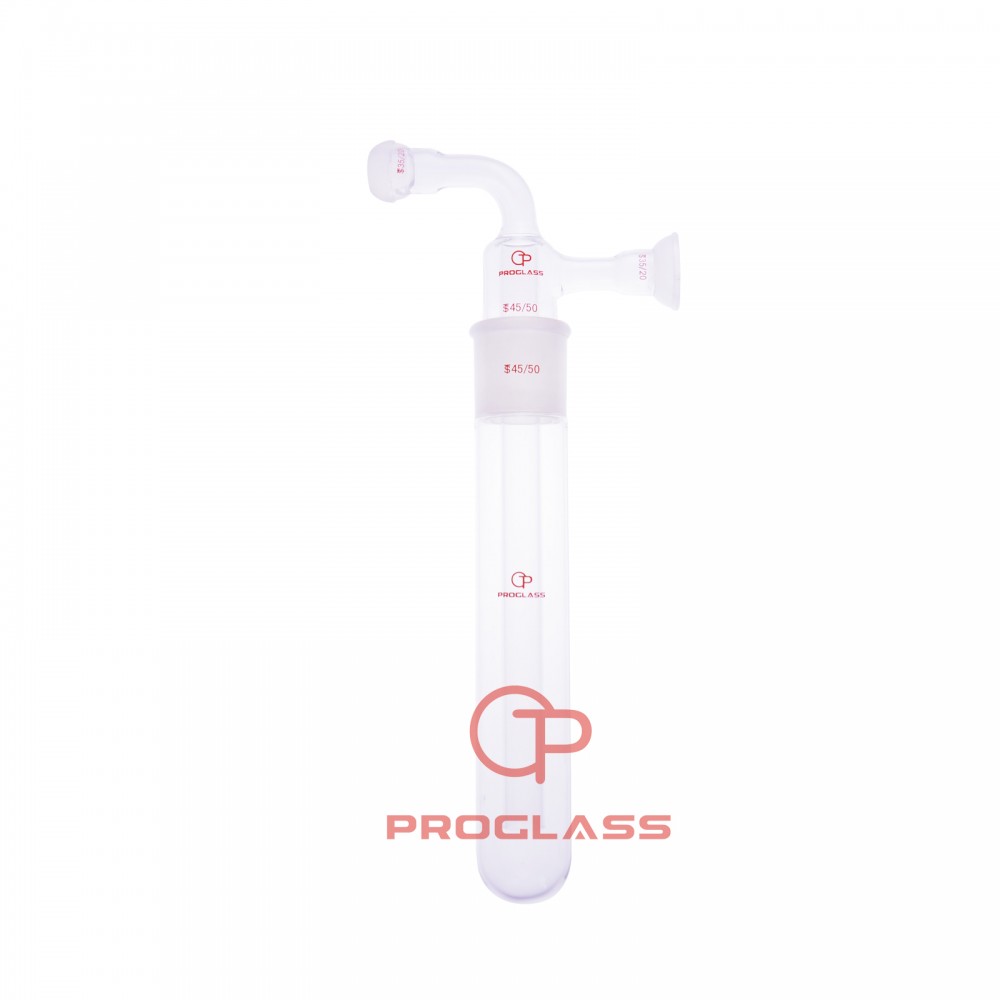

Two piece construction for easy removal of condensate. Inlet and outlet are 180º apart for installation into a variety of vacuum systems. Stopper has a standard taper inner joint and body has an outer joint. Body length is the overall length from the top of the joint to the bottom of the round bottom. 15mm O-ring joints.

45/50 ground joint in the body,250mm Length,OD of the inner tube is 18mm.

Annealing Point ------560℃

Linear Coefficient of Expansion------ 33×10-7/℃

Softening Point------820℃
